Planetary Gearbox Reducer: Powering the Future of Solar and Wind Energy
As the global transition toward renewable energy accelerates, photovoltaic (PV) solar and wind power have emerged as the twin pillars of sustainable electricity generation. Behind the gleaming solar panels and towering wind turbines lies a critical mechanical component that ensures precision, durability, and efficiency: the planetary gearbox reducer. With its unique ability to deliver high torque in compact packages while withstanding extreme environmental conditions, the planetary gearbox reducer has become an indispensable technology across the new energy sector. This article explores the specific application scenarios where planetary gearbox reducers drive innovation in solar and wind power systems.
Photovoltaic Solar Power: Tracking the Sun with Precision

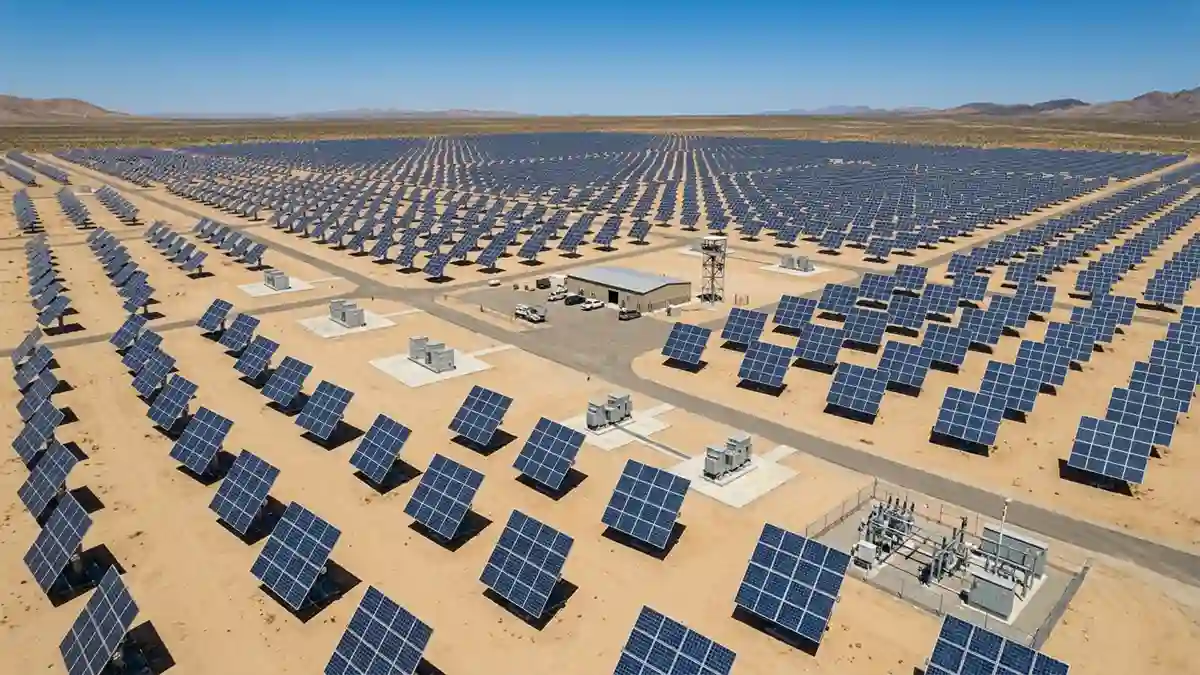

Single-Axis and Dual-Axis Solar Tracking Systems
Traditional fixed-mount solar panels capture sunlight at a single angle throughout the day, limiting energy yield. Modern utility-scale solar farms increasingly deploy tracking systems that dynamically orient panels to follow the sun’s path, boosting energy capture by 25–45%. Whether single-axis trackers rotate panels along one horizontal axis or dual-axis trackers adjust both azimuth and elevation, each movement relies on a planetary gearbox reducer to convert high-speed, low-torque motor rotation into slow, powerful slewing motion.
The gearbox must overcome substantial wind loads, gravitational forces, and inertial resistance while maintaining positional accuracy within fractions of a degree. Planetary gearbox reducers excel here because their multi-stage gear arrangement—typically featuring sun gears, planet gears, and ring gears—distributes load across multiple mesh points. This architecture delivers torque densities far exceeding those of worm or spur gear alternatives, enabling a compact drive unit capable of rotating hundreds of square meters of solar arrays.
Slewing Drives in Solar Trackers
At the heart of every tracking system sits a slewing drive, where the planetary gearbox reducer is integrated with a slewing bearing and electric motor into a sealed, self-contained unit. These drives operate in harsh outdoor environments, exposed to UV radiation, temperature swings from −40°C to +80°C, dust, sand, and humidity.
A high-quality planetary gearbox reducer for solar applications features IP65 or higher enclosure ratings, synthetic lubricants formulated for wide temperature ranges, and corrosion-resistant coatings. The self-locking characteristics inherent to certain planetary designs prevent back-driving during high-wind events, protecting panels from uncontrolled movement without requiring additional brakes. For dual-axis trackers, independent planetary drives control elevation and azimuth, working in synchronized harmony to maximize daily energy harvest.
Wind Power: Controlling Forces of Nature
Wind Turbine Pitch Control Systems
Wind turbine blades must continuously adjust their angle of attack—known as pitch—to optimize aerodynamic efficiency across varying wind speeds and to protect the turbine during storms. Each blade is equipped with an independent pitch drive system, where a planetary gearbox reducer connects an electric servo motor to the blade hub mechanism.
The demands on pitch drive gearboxes are extraordinary. They must deliver precise angular positioning under oscillating loads, absorb sudden gust-induced shocks, and maintain full functionality during emergency feathering sequences where blades must rotate to a neutral position within seconds to prevent overspeed damage. Planetary gearbox reducers designed for pitch systems offer backlash below 3 arcminutes, ensuring that blade angles respond instantly to control signals. Their coaxial design allows the motor and gearbox to fit within the confined hub space, while multi-stage reduction ratios from 50:1 to 500:1 provide the immense torque necessary to rotate multi-ton blades against aerodynamic resistance.
Wind Turbine Yaw Systems
While pitch control adjusts blade angles, yaw systems rotate the entire nacelle to face the wind direction. Mounted at the tower-nacelle interface, yaw drives typically consist of multiple planetary gearbox reducers equipped with pinion gears that engage a large ring gear fixed to the tower top.
These systems face unique challenges: the nacelle and rotor assembly can weigh hundreds of tonnes, creating enormous static friction that must be overcome to initiate rotation. Planetary gearbox reducers provide the high starting torque required while maintaining smooth, controlled movement to prevent structural fatigue. The distributed load-sharing among planet gears ensures even wear and extended service life—critical for offshore turbines where maintenance access is limited and costly. Advanced yaw gearboxes incorporate integrated brakes, encoders, and temperature monitoring to deliver decades of reliable operation in corrosive maritime atmospheres.
Main Gearbox in the Nacelle
Beyond pitch and yaw applications, larger wind turbines employ planetary stages within the main power transmission gearbox located in the nacelle. Here, the planetary gearbox reducer steps up the slow rotation of the rotor (10–20 RPM) to the high speeds required by the generator (1,000–1,800 RPM).
These multi-megawatt gearboxes represent some of the largest and most sophisticated planetary systems in industrial use, handling input torques exceeding several meganewton-meters while operating in a compact envelope.
The Technical Advantage
What makes the planetary gearbox reducer uniquely suited to renewable energy applications? Its fundamental architecture—sun gear, multiple planet gears, ring gear, and planet carrier—delivers several decisive advantages:
- High Torque Density: Multiple planet gears share the load, enabling higher torque capacity per unit volume and weight than parallel-shaft alternatives.
- Compact Coaxial Design: Input and output shafts align on the same axis, saving space in crowded nacelles and tracker drive housings.
- Exceptional Efficiency: Per-stage efficiency reaches 97–98%, minimizing energy losses and heat generation.
- Smooth Torque Transmission: Even load distribution reduces vibration and noise—critical for wind turbine longevity and solar tracker precision.
- Backlash Control: Precision-ground gears achieve backlash below 1 arcminute in high-end variants, essential for accurate positioning.
Conclusion
From the sun-tracking solar farms stretching across desert landscapes to the offshore wind turbines harnessing ocean breezes, the planetary gearbox reducer serves as the mechanical backbone of renewable energy infrastructure. Its unmatched combination of torque density, precision, durability, and compactness addresses the core engineering challenges faced by both photovoltaic and wind power systems. As global capacity for solar and wind generation continues to expand exponentially, the planetary gearbox reducer will remain a foundational technology—quietly converting electrical signals into the controlled mechanical motion that captures nature’s energy and powers a sustainable future.
