Planetary Gear Reducer: The Muscle Behind Construction and Agricultural Machinery
From towering skyscrapers to vast agricultural fields, modern civilization relies on heavy machinery that operates under extreme loads, harsh environments, and relentless schedules. Whether excavating foundations, harvesting grain, or compacting asphalt, these machines demand drive systems that deliver immense torque in compact, durable packages. The planetary gear reducer has emerged as the go-to solution across both construction equipment and agricultural machinery sectors, providing the torque multiplication, load distribution, and reliability required to keep these industries moving. This article explores the specific application scenarios where planetary gear reducers prove indispensable.
Construction Equipment: Building the World

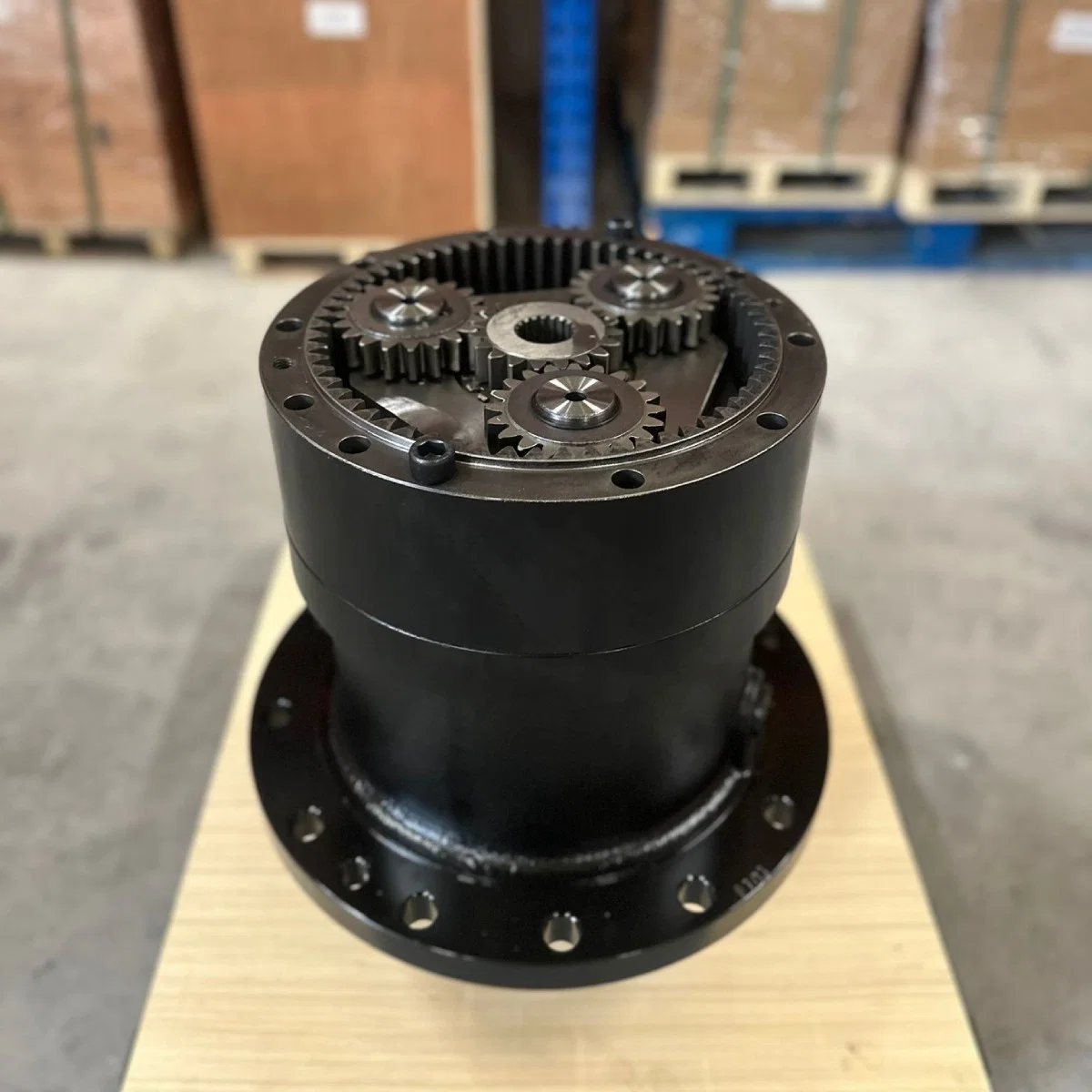

Excavator Swing Drives
Hydraulic excavators are the workhorses of construction sites worldwide, and their ability to rotate the upper structure 360 degrees relative to the undercarriage is fundamental to productivity. This rotation is powered by a swing drive motor coupled to a planetary gear reducer, which transmits torque to a slewing ring gear.
The demands on excavator swing drives are severe: they must overcome the inertia of a multi-ton boom, arm, and bucket assembly while resisting shock loads from sudden digging stops and starts. Planetary gear reducers excel here because their multi-stage architecture—featuring sun gears, planet gears, and ring gears—distributes the load across multiple mesh points. This allows a compact reducer to handle torque outputs exceeding 100,000 N·m while fitting within the confined swing motor housing. The coaxial design also simplifies integration with hydraulic motors, creating a robust, sealed drive unit that withstands dust, mud, and vibration on job sites.

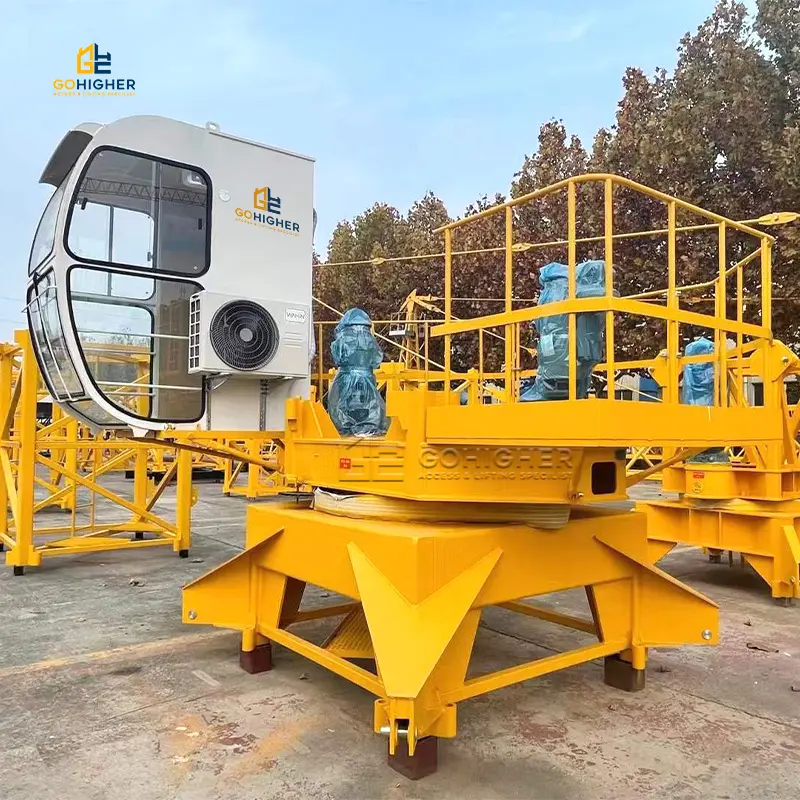

Tower Crane Slewing Systems
Tower cranes lift construction materials to heights exceeding 100 meters, requiring precise rotation of the jib to position loads accurately. The slewing mechanism at the crane base uses multiple planetary gear reducers with pinion gears that engage a large slewing ring.
These reducers must deliver smooth, controlled rotation while supporting the entire weight of the crane, counter-jib, and suspended load—often totaling hundreds of tonnes. The high reduction ratios (typically 100:1 to 500:1) provided by planetary stages convert high-speed motor input into the slow, powerful slewing motion needed for safe load positioning. The inherent self-locking characteristics of certain planetary configurations prevent uncontrolled jib rotation during high winds, enhancing site safety.
Concrete Mixer Truck Drum Drives
Concrete mixer trucks must rotate their drums continuously during transport to prevent the mixture from setting. A planetary gear reducer connects the truck’s power take-off (PTO) or auxiliary engine to the drum, providing the high torque necessary to rotate several cubic meters of dense concrete.
The reducer must handle highly variable loads: a full drum of wet concrete can exceed 30 tonnes, while the mixing action creates constant pulsating forces. Planetary gear reducers designed for mixer applications feature heavy-duty bearings, reinforced housings, and specialized seals to prevent cement dust ingress. Their high efficiency minimizes power draw from the vehicle engine, while the compact coaxial design allows the drive system to fit within the limited space behind the truck cab.
Road Roller Vibration Mechanisms
Compaction equipment uses vibrating drums to densify soil, gravel, and asphalt. Inside each drum, eccentric weights are driven by a planetary gear reducer to generate high-frequency vibration forces that can exceed 400 kN.
The planetary reducer in a vibration drum must operate in a sealed environment filled with lubricating oil, transmitting torque to rotating eccentric masses while the entire drum rolls over rough terrain. The distributed load-sharing among planet gears ensures even wear despite the constant cyclical loading, extending service intervals in a component where maintenance access is extremely limited. High shock-load capacity is essential, as the drum repeatedly impacts irregular surfaces at high frequency.
Wheel Loader Final Drive Axles
Wheel loaders and other heavy earthmoving equipment use planetary gear reducers within their final drive hubs to deliver the massive torque required for tractive effort. These planetary gear reducers are integrated into the wheel hub, stepping down axle shaft speed to drive the large tires at appropriate ground speeds.
The hub-mounted design saves space in the axle housing while allowing the motor and main transmission to operate at efficient higher speeds. Planetary final drives must endure extreme loads during digging and pushing operations, where wheels encounter rocks, trenches, and uneven ground. Their ability to handle brief overloads of 300% rated torque makes them ideal for these high-impact applications.
Agricultural Machinery: Feeding the World
Tractor Power Take-Off (PTO) Systems
Modern tractors serve as mobile power platforms for hundreds of implements, from mowers and balers to pumps and generators. The PTO shaft draws power from the engine and delivers it to attached equipment, often through a planetary gear reducer that adjusts speed and torque to match implement requirements.
Planetary PTO reducers allow a single tractor to power implements with vastly different speed requirements—540 RPM, 1,000 RPM, or even higher—by providing selectable reduction ratios. The compact design fits within the tractor’s rear housing, while the robust construction handles the torsional shocks generated when implements engage suddenly or encounter field obstructions.
Combine Harvester Drives
Combine harvesters integrate multiple functions—cutting, threshing, cleaning, and grain handling—into a single machine that must operate reliably during narrow harvest windows. Planetary gear reducers drive the header reel, threshing drum, cleaning fans, and unloading auger.
The header drive, for example, must maintain precise reel speed relative to ground speed to ensure clean crop feeding without losses. Planetary reducers provide the torque to rotate wide cutter bars through dense, tangled crop while allowing speed adjustment for varying crop conditions. In the threshing mechanism, planetary drives handle the immense power required to separate grain from straw, operating continuously for 12–16 hours per day during peak season.
Seeder and Planter Drives
Precision agriculture demands that seeds be planted at exact depths and spacing to maximize yield. Modern seeders use planetary gear reducers to drive metering wheels and seed distribution systems at ratios synchronized with ground speed.
The reducer must deliver consistent rotation despite uneven terrain and varying soil resistance. Planetary gearing’s smooth torque transmission prevents seed damage during metering, while its compact size allows multiple drive units to be mounted across wide planter bars spanning 12 meters or more. The high efficiency of planetary reducers minimizes the power drawn from the tractor, leaving more horsepower available for traction and other functions.
Center-Pivot Irrigation Systems
Center-pivot irrigation systems traverse circular fields up to 800 meters in diameter, delivering precise water volumes to crops. Each tower segment is driven by an electric motor and planetary gear reducer that moves the system at speeds as slow as 2 meters per hour.
The planetary reducer must overcome significant rolling resistance from wheels sinking into soft soil while maintaining perfectly synchronized movement across all towers. Any misalignment causes structural stress and water application errors. Planetary gear reducers with high reduction ratios and self-locking capabilities ensure that each tower advances at exactly the same rate, even on sloping terrain. Their sealed, weather-resistant construction withstands constant exposure to moisture, fertilizer, and UV radiation.
Tractor-Mounted Boom Sprayers
Crop protection requires precise chemical application across wide swaths. Tractor-mounted boom sprayers extend spray arms 12–36 meters on either side, with hydraulic or electric systems adjusting boom height and fold angles. Planetary gear reducers drive these positioning mechanisms.
The reducer must deliver smooth, controlled motion to prevent boom oscillation that could cause uneven spray patterns. Compact planetary units fit within the boom hinge assemblies, while their high torque output handles wind loads and the weight of fluid-filled spray lines. The durability of planetary gearing ensures reliable operation throughout long spraying seasons, minimizing downtime during critical application windows.
The Heavy-Duty Advantage
What makes the planetary gear reducer the preferred choice across construction and agriculture? Its architecture—a central sun gear, multiple planet gears orbiting within a ring gear, and a planet carrier—delivers unmatched benefits for heavy machinery:
- Superior Torque Density: Multiple planet gears share the load, enabling higher torque in a smaller, lighter package than parallel-shaft alternatives.
- Coaxial Design: Input and output shafts align on the same axis, simplifying integration into compact housings like wheel hubs and swing drives.
- Exceptional Shock Resistance: Distributed load-sharing absorbs impact loads that would damage conventional gear systems.
- High Efficiency: Per-stage efficiency of 97% minimizes power loss and heat generation under continuous duty.
- Durability: Even wear distribution across planet gears extends service life in applications where maintenance is costly and difficult.
From the swing drives of excavators shaping city skylines to the irrigation systems watering vast agricultural plains, the planetary gear reducer serves as the mechanical backbone of heavy equipment industries. Its unique ability to deliver massive torque in compact, rugged packages addresses the core engineering challenges faced by both construction and agricultural machinery manufacturers. As these industries continue to demand greater efficiency, precision, and reliability, the planetary gear reducer will remain an essential technology—quietly converting engine power into the controlled mechanical motion that builds and feeds our world.
